Deep Cycle Replacement UPS battery SLA VRLA 12V 5Ah Rechargeable Battery

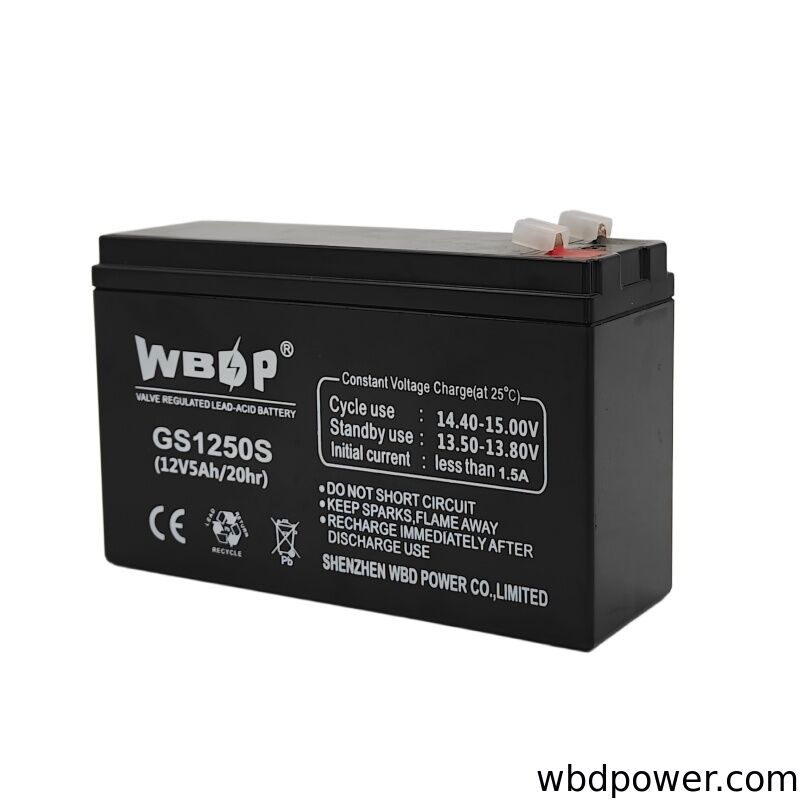

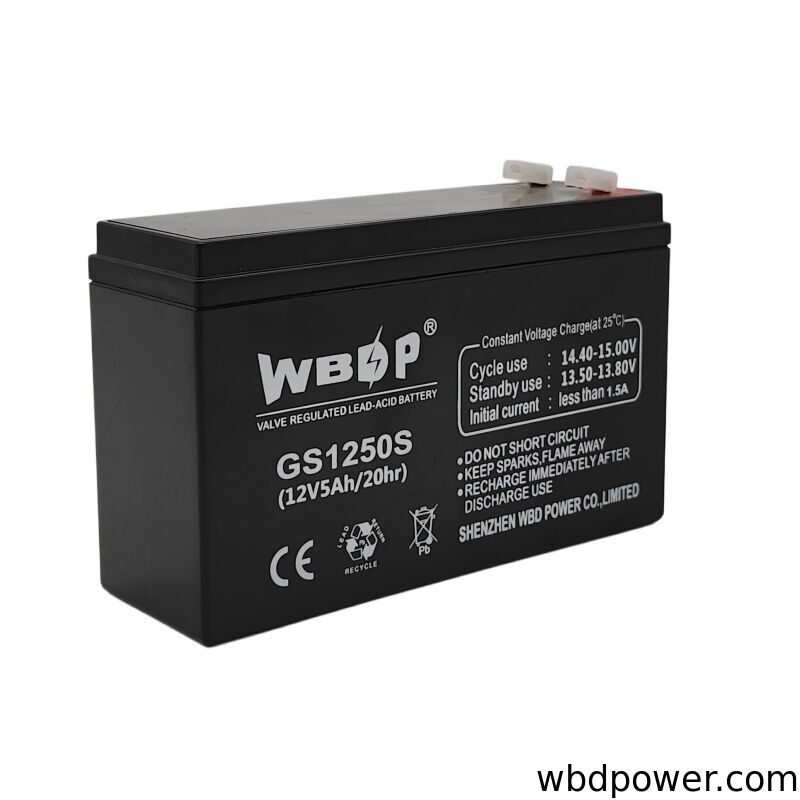

WBDP GS1250S is a mainstream medium-capacity maintenance-free sealed VRLA battery of our classic GS standby series. With standard dimension 1516594mm and net weight only 1.8kg, this 12V 5Ah rechargeable battery delivers stable long-duration backup power. It is the most widely used replacement battery for small & medium UPS uninterruptible power supply systems, ideal for office, household and commercial backup power distributors worldwide.

• Model: GS1250S
• Rated Voltage & Capacity: 12V 5Ah (20-hour discharge rate)
• Overall Size: 151 * 65 * 94 mm
• Net Weight: 1.8 kg
• Battery Type: Valve Regulated Sealed Lead-Acid (VRLA)
• Charging Parameters (25℃ Ambient Temperature)
  • Cycle charging mode: 14.40–15.00 V
  • Float standby charging mode: 13.50–13.80 V
  • Max initial charging current: ≤1.5 A
• Terminal: Flat metal tab terminals with dust-proof plastic caps, convenient for wire soldering and connector assembly
• Certifications: CE, EU REACH SVHC compliant

1. Standard Universal Size for Direct UPS Replacement

   The standard 1516594mm shell size matches most mainstream 12V5Ah UPS battery compartments globally. Plug-and-play replacement without modifying the UPS cabinet structure, greatly reducing after-sales installation difficulty.

2. Fully Sealed Leak-Proof & Zero Maintenance

   Hermetic safety valve sealing technology locks electrolyte inside the battery housing, completely avoiding acid leakage. No regular water refilling required, safe to install inside closed UPS equipment without corrosion risk to circuits.

3. Reliable Stable Backup Performance for Power Outages

   Optimized lead-calcium alloy plate design realizes ultra-low self-discharge rate. It maintains steady voltage output during long-time floating standby, provides sufficient power reserve to protect computers, routers and monitoring devices from sudden power failure.

4. Complete Global Export Compliance Certifications

   All GS series batteries pass CE marking and REACH hazardous substance testing, fully meet import standards of Europe, North America, Southeast Asia and other regions, supporting smooth customs clearance for bulk overseas orders.

5. Long Service Life & Wide Temperature Adaptability

   Anti-oxidation grid formula effectively slows capacity attenuation. It can operate stably under normal indoor temperature environments for years of round-the-clock UPS standby use.

• Household & office mini/mid-size UPS backup power replacement
• Small server room uninterruptible power supply
• Emergency lighting central power cabinets
• Security alarm and fire monitoring host standby power
• Portable monitoring equipment and small solar backup power
