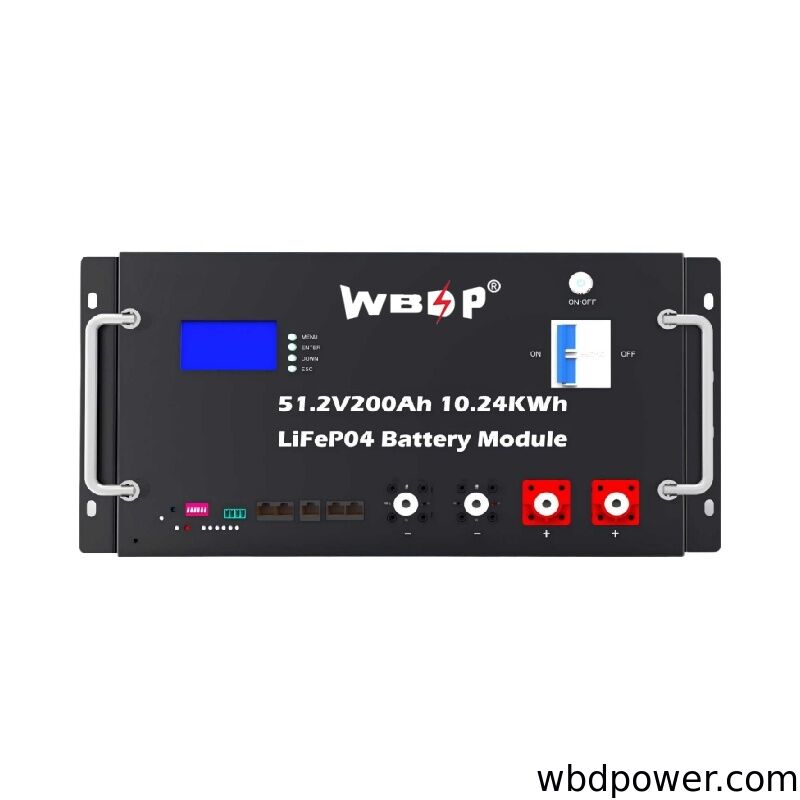

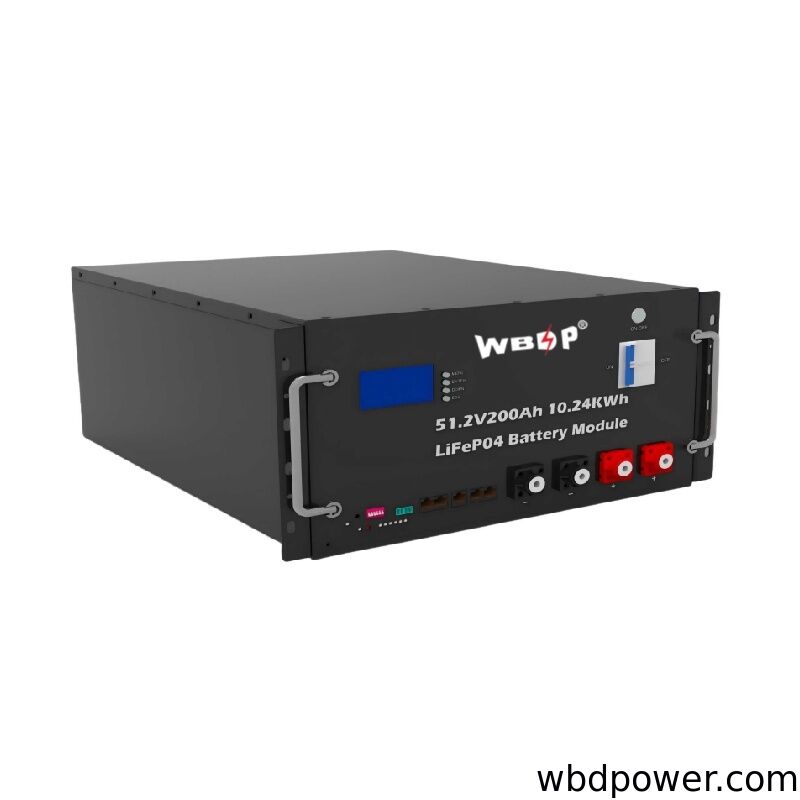

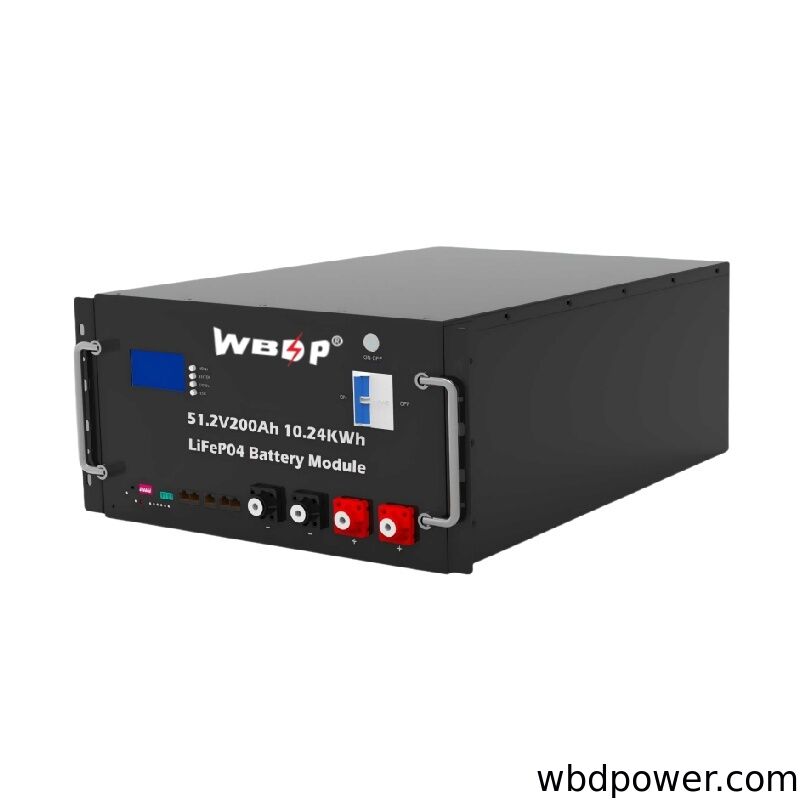

51.2V 200Ah 10kWh Lithium LiFePo4 Battery Rechargeable Rack Mount Lithium Battery

WBDP LFP512200 is a rack-mounted lithium iron phosphate energy storage battery module developed for residential, commercial and off-grid solar energy storage systems. Rated at 51.2V 200Ah with total capacity 10.24kWh, this 4U rack battery features standard cabinet dimensions 482*306*576mm and net weight of 87.7kg. Built with automotive-grade LiFePO4 cells and an intelligent integrated BMS protection system, it delivers ultra-long cycle life, high safety performance and seamless compatibility with most mainstream solar inverters. It is the preferred energy storage solution for solar installers, energy system integrators and global renewable energy distributors.

• Model: LFP512200
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V (16S LiFePO4 pack)
• Rated Capacity: 200Ah
• Total Energy: 10.24 kWh
• Outer Dimension: W482 * H306 * D576 mm (Standard 4U Rack Size)
• Net Weight: 87.7 kg
• Rack Standard: 19-inch server rack mount design, dual side carrying handles for easy installation
• Built-in BMS: Intelligent all-around protection + active cell balance
• Communication Ports: RS485, CAN, Bluetooth, LCD real-time display screen
• Max Series/Parallel Expansion: Support multi-units series & parallel to expand storage capacity
• Discharge Cut-off Voltage: 40V
• Charge Cut-off Voltage: 58.4V
• Cycle Life: ≥6000 cycles @ 80% DOD
• Certifications: CE, UN38.3, MSDS, IEC62619

1. Ultra Safe Automotive-Grade LiFePO4 Cells Lithium iron phosphate cathode material features outstanding thermal stability, no risk of thermal runaway or fire hazards. Each cell is equipped with independent overcharge, over-discharge, over-current and short-circuit protection, fully meeting global energy storage safety standards for household and commercial use.
2. 6000+ Long Cycle Life & Low Operation Cost Supports more than 6000 deep charge-discharge cycles at 80% depth of discharge, 4–6 times longer service life than traditional lead-acid batteries. Low self-discharge rate reduces energy loss during standby, drastically cutting long-term replacement and maintenance costs for energy storage projects.
3. Integrated Smart BMS with Multi-Communication Function Built-in high-precision BMS with active cell balancing to keep consistent voltage between cells, maximizing full pack capacity and service lifespan. Equipped with LCD display, CAN/RS485/Bluetooth communication ports, real-time monitoring of voltage, current, SOC, temperature via inverter or mobile APP.
4. Standard 19-inch 4U Rack Mount Design for Easy Installation Universal 482mm width fits all standard 19-inch server energy storage cabinets. Ergonomic metal side handles allow single-person transport and rack loading. Integrated main power disconnect switch simplifies safety operation during maintenance. Red positive / black negative thick copper terminals support high-current parallel connection.
5. Wide Compatibility with Global Solar Inverters Perfectly matched with most mainstream hybrid solar inverters, off-grid inverters and grid-tied energy storage systems. Supports flexible series & parallel expansion to scale capacity for small residential backup up to large commercial energy storage power stations.
6. Full Global Export Safety Certifications Passed UN38.3 air/sea transportation safety test, CE, IEC62619 and MSDS hazardous goods certification. Smooth customs clearance for shipments to Europe, North America, Southeast Asia, Africa and Middle East renewable energy markets.

• Residential off-grid & hybrid solar energy storage systems
• Commercial rooftop solar backup power storage
• Rural remote area off-grid power supply
• UPS uninterruptible backup power for offices, server rooms and factories
• Mobile energy storage container power stations
• RV, yacht and portable off-grid power equipment
• Micro-grid wind-solar hybrid energy storage projects
